Tossed 9 Patch

Posted on by
4

The other day I considered what to do with my large stash of 5″ squares.

Bin of 5″ squares from a variety of sources

It occurred to me that I might be the only quilter in the world who hadn’t yet made a tossed 9 patch quilt.

Just on the off chance you haven’t made one yet, here’s the drill.

The 9-patch block was 15.5″ with raw edges. Drawing done with Electric Quilt 8.

Start by making a 9 patch (duh). I cut a bunch of light colored 5″ patches and enough red 5″ patches for 22 nine-patch blocks, then used various 5″ squares from my bin for the four corners.  (Yes, that only got rid of 88 5″ squares. Still…)

I included some old favorites from the 5″ bin:

Blueberry fabric bought in Maine, one of the Moda wildflower fabrics, the fruit ladies from Elizabeth’s Studio, and some of my favorite metallic dot fabric.

After assembling the 9 patch blocks, I cut them in quarters, resulting in 88 blocks like this:

This is one quarter of the original 9-patch block. Drawing done with Electric Quilt 8.

When all my 88 blocks were made, I played with layouts until I had one I liked. There are a lot of different ways to cut the 9 patch block, and even more ways to lay out the resulting blocks, so it took a while.

After it was quilted, I decided on a blue and white striped border, which I cut on the bias.

And here’s the finish:

Quilt Stats:

Name: Tossed 9-patch

Designed and made by: me, though of course there is nothing new under the sun, This idea has been around forever.

Finished size: 51″ x 71″

Quilted by: Linda

Super Fans Tutorial

Posted on by
27

When I showed this quilt last week, I promised a tutorial on how to make the blocks. So here goes!

The first (most important?) step is to choose a block size for which you have a square-up ruler in your collection. This makes the whole process easier, as you’ll see.

No my ruler isn’t a trapezoid, but I had to take the picture at an angle to avoid reflections!

Then choose a couple of strips that are about 2″ longer than the square-up ruler. My ruler trims to 9.5″ (for a finished 9″ block), so I chose strips about 11.5″ long. You can either cut wedges for your strips, or join the strips and then trim the edges to make them wedge-shaped. I had a bunch of 1.5″ strips, so I did the sew-and-trim way.

Continue to add strips to each side, alternating sides. Alternating sides makes it easier to keep the block symmetrical. It isn’t necessary to use 1.5″ strips–you can use any width from about 1″ on up.

Press all seams open to decrease bulk. And when you trim seams to make a wedge, leave at least 1/2″ of width at the narrow end to avoid extra bulk when adding the next strip.

The seam that is circled at the bottom just meets because the strip was narrowed to 1/2″ at that end

The piece will, of course, tend to curve. To counteract that tendency, I sometimes add longer strips to correct for the way the edges want to angle down at both ends.

Here’s a longer strip I added to be sure the edges weren’t curving too much.

Keep checking to be sure the block is outside the edges of the ruler at both the top and bottom of each strip.

And finally comes the happy day when the block is as wide as it needs to be at the top!

From here on you can add shorter strips. Align them at the bottom of the block to start sewing. Keep checking, and when the piece is wide enough, trim all edges with your square-up ruler.

When trimming, I pick a line near the middle of the ruler and lay it along a seam near the center of the block to get everything as even as possible.

I stitched about 1/8″ from the edges

Stay stitch all edges! This is important because you really, really don’t want those seams to start coming undone, and because there are many bias edges.

DONE!

You may notice that the last strips (bottom corners) are a bit wider than the others. That is done to avoid the possibility of having a seam in the block come at a corner when joining to other blocks.

Quilt Stats

Name: Super Fans

Designed and made by me, with inspiration from Pinterest

Finished size: 47″ x 65″ (5 x 9 blocks, 9″ each, with 1″ border on all sides)

Quilted by: Linda

There are 18 pieces in the sample block above. That means the finished quilt has approximately 810 strips. Thank goodness I didn’t calculate that until now!!!



Scrappy Triangle Swap Blocks

Posted on by
14

I’ve belonged to a block swap group for a long time, but we have done extra during COVID. Here’s the latest, a scrappy triangle block. In case you want to know, it’s made with the tri-recs tool, available several places–just ask Ms. Google.

What we haven’t done is put any of these into a quilt! Here are some ideas on layout:

And in case you’ve never made improvised scrap blocks, here are directions. We’ve been using single-color scraps, but there’s no reason the color scheme can’t be scrappy.

Start by choosing 2 scraps you like and sew them together any way you care to. If one has a curved side, you can choose to sew the curve or cut it off straight.

Trim up an edge so you can add something else.

Keep adding pieces, checking occasionally to see if your template is going to fit on the scraps.

It’s fine to add BIG pieces too in order to move things along.

Press all the seams open. Too much bulk otherwise with all those seams.

Finally, cut around your template and assemble the block.

What templates do you like to use?

Tessellations again!

Posted on by
12

In a moment of madness, I agreed to do a program on tessellations for my MQG in Greensboro.  I’ll be posting the same information here so we can all share it and so that these blogs can serve as “handouts” for my presentation.  To start, here’s a blog written by my friend Jean Larson, who has designed and made several award-winning tessellation quilts.  To view some of Jean’s quilts, click HERE.  –MJP

Tessellating designs make me happy.  Tweaking those designs is even more fun.   I want to share the joy of starting with a very, very simple design and watching it blossom.

Start with a simple gridded block and create a light/dark design.  Here, I’ve started with a 3 x 3 grid.  Then re-color the same block with the lights and darks reversed

.The grid lines are only for design purposes, and each block can be constructed with a single square block with 2 corner triangles attached using any method you prefer.

Here are some design possibilities…Quilt_1A simple “cat head” quilt using only 2 colors.

Different looks can be achieved with variations in the color placement.

Blocks can be inverted and turned for even more quilt designs.

Just imagine all the possibilities with color in these!!!!!

It’s even more complex when you design with a 6×6 grid.  Here are the positive and negative versions of another block.

These blocks can be constructed using half-square triangles integrated with larger fabric pieces.  If these blocks were to finish at 6 inches by 6 inches.  The center column on each block would be a single 3.5 inch wide by 6.5 in long piece of fabric.  The side strips would include some half-square triangles.

A couple of the quilts that can be made:

Looks like spools, some gray, some white, all standing up.  Same quilt with alternate blocks turned a quarter turn yields a different  clearly recognizable tessellation.  Reminds me of tessellating doggie rawhide chews 😉

Now back to the spool quilt from above.  The “thread” areas have been colored in.  No blocks have been turned.

Jean spool 5This shows the power of color and value (lightness and darkness).   The colored part, being next to the gray and being closer in value to the gray, unites those parts of the block, and gives the illusion that we have all gray spools on a white background, some standing up, some lying down.

I hope these examples can be the seeds to sprout some design experimentation with tessellating shapes.

  1. Start with 2 square grids
  2. Create a positive design, and its negative design
  3. Alternate them in a quilt layout
  4. PLAY!
  5. And play more with color!

Happy Quilting (and Designing)!!   –Jean Larson





















I’m In, But…

Posted on by
10

The “My Favorite Color is Moda Sampler” came to my attention because Studio Stitch is offering it as a block of the month this year.

At the same time, I decided to abandon my temperature quilt, which left a lot of solid color yardage to be re-purposed.

Voila!  I went to Studio Stitch and got the pattern booklet to re-purpose the temperature quilt fabrics!   Of course I don’t follow directions, so I re-drafted Block 1 to change the color scheme and construction methods.

My re-drafted block is constructed as a medallion rather than as the complex 9-patch construction in the Moda booklet.  It’s neither better nor worse, but presents different challenges.  Here are a few tips for having all those points “come out right”:

  1.  Of course you already have cut carefully and obtained a uniform scant 1/4″ seam allowance.  Alas, that isn’t enough!
  2. Where points come together, lay the blocks right sides together (RST) as they will be stitched and stick a pin straight through at the point where two fabrics interesect on block 1 and into the point where fabrics intersect in block 2 in order to match up these points.  Keep the pin vertical while you insert pins on either side of it to hold the blocks in place.  Then remove the vertical pin.
  3. Baste part of the seam, starting about 1″ before the intersection and ending about 1″ after the intersection.  I just use the longest stitch on my machine for this.  Gently open the seam and check the points.  If the match is perfect, return to regular stitch length and stitch the whole seam.  If it’s not perfect, just remove the basting and try again.
  4. When joining rows where multiple points need to match up, do steps 2 and 3 for each of the points!  If one side is a little too long between points, stitch with that side down and the feed dogs will take up the slack.
  5. Set your own standard for what constitutes a perfect match!  If it’s good enough for you, it’s good enough for anybody else!

    My personal standard is “if it’s less than 1/16th inch off, leave it alone! I can see the slight mis-match in the upper left, but really, who cares?

Have fun!

And a big THANK YOU to folks who made suggestions for how I can re-purpose the strips I’ve already made for the temperature quilt.  I almost threw them out!  Now I have some nice ideas on what to do with them.  To be continued.

Designing to Avoid Intersecting Seams

Posted on by
11

My friend Chela asked about designing to avoid intersecting seams.  The goal is to make a quilt less “fussy” to construct. Here are 3 ways to do that. Thanks for the idea, Chela!

One of the easiest ways to avoid intersecting seams is to move alternate rows over 1/2 block. This can create interesting designs that you wouldn’t have suspected if you hadn’t tried it!

My most recent example is a quilt I designed for Studio Stitch:

Lightening. Read about it in last week’s post if you like.

Of course, many traditional patterns depend on the blocks lining up exactly to create visual interest.  They might not benefit from shifting half a block!  Just look at this:

Another favorite way to avoid obvious intersections is to partially frame blocks so that they appear offset. The intersections get lost in the background and the design is much more interesting. One of my favorite examples of this is the BQ2 pattern by Maple Island Quilts.

I taught a class with this pattern and called it “Easier Than It Looks” because it is! The design looks complex but in reality it is just a matter of framing and rotating blocks. Here’s the quilt I made as a sample for the class:

Another example of partially framed blocks is my recent “Little Jewels” quilt:

And good news!  I tracked down the origin of this design and you can find instructions for it free on this website.

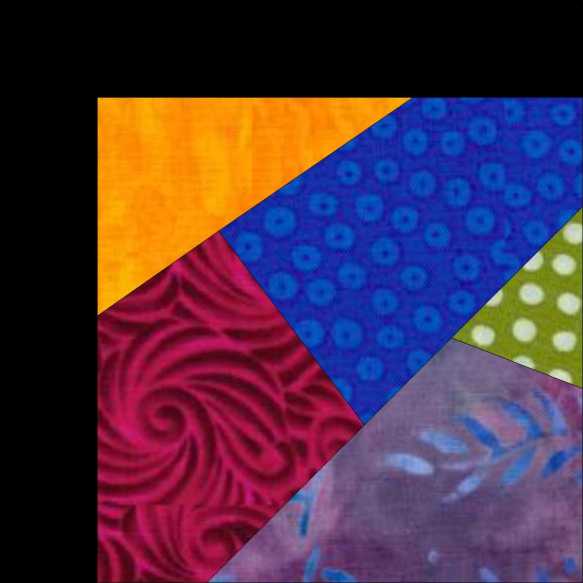

Here is an example of one block.

The “trick” is that each block is framed on two sides, making it asymmetrical.  Then alternate blocks are rotated 180 degrees so that any sense of quilt rows is lost!  Make a couple of scrap blocks and try it–it’s magic!  In truth, there are the usual intersections between blocks but the corners are almost impossible to see 😀

Finally, making blocks of different sizes certainly can be used to avoid intersecting seams. I consider this a design-as-you-go process and it does take both time and confidence, but it works well.  Here is one I made ages ago:

art quilt, gwen marston

Refrigerator quilt inspired by Gwen Marston. Bev Manus came up with the idea for refrigerator quilts.  Finished size 12″ x 12″

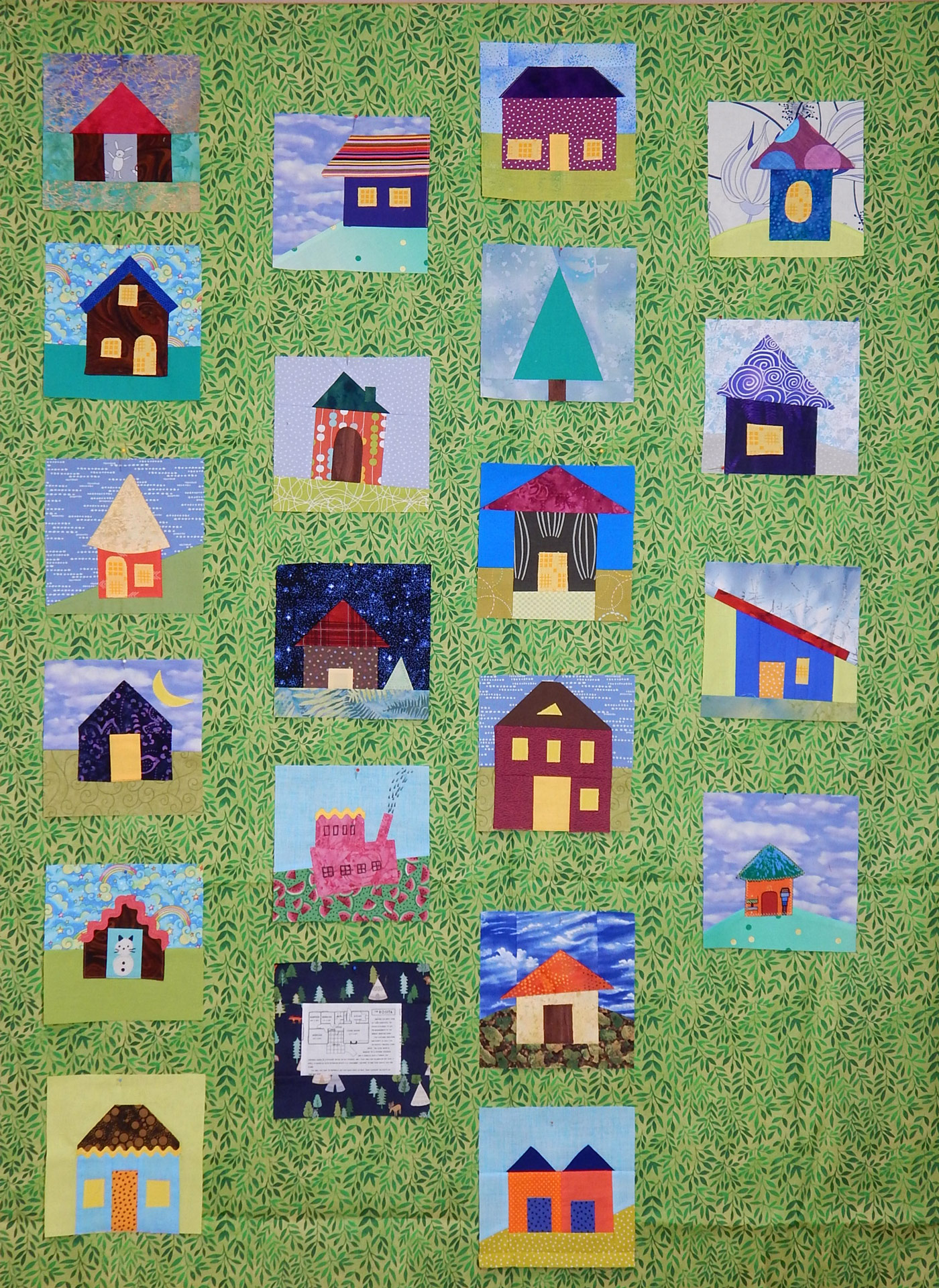

And here are some recent blocks up on the design wall to test a potential background fabric:

These blocks are all the same size (will finish 6″) but the sashing will be variable.  I’m setting them in vertical rows with variable distances between the rows, and variable distances between the blocks within each row!  No way will there be anything to line up 😀

Have a good week and share any tricks you have to avoid fussy intersections!

Guest Blogger: Linda Reviews Rulerwork Quilting!

Posted on by
12

This is a guest post by my blogging friend Linda Hungerford (flourishingpalms.blogspot.com).Linda at her machine; photo courtesy of Linda Hungerford



This post is to review a new book published by C&T: The Ultimate Guide to Rulerwork Quilting by Amanda Murphy.

Photo courtesy of C&T

Mary invited me to review the book knowing I’m an avid domestic machine quilter who began quilting in 2000, and started quilting with rulers in 2011.

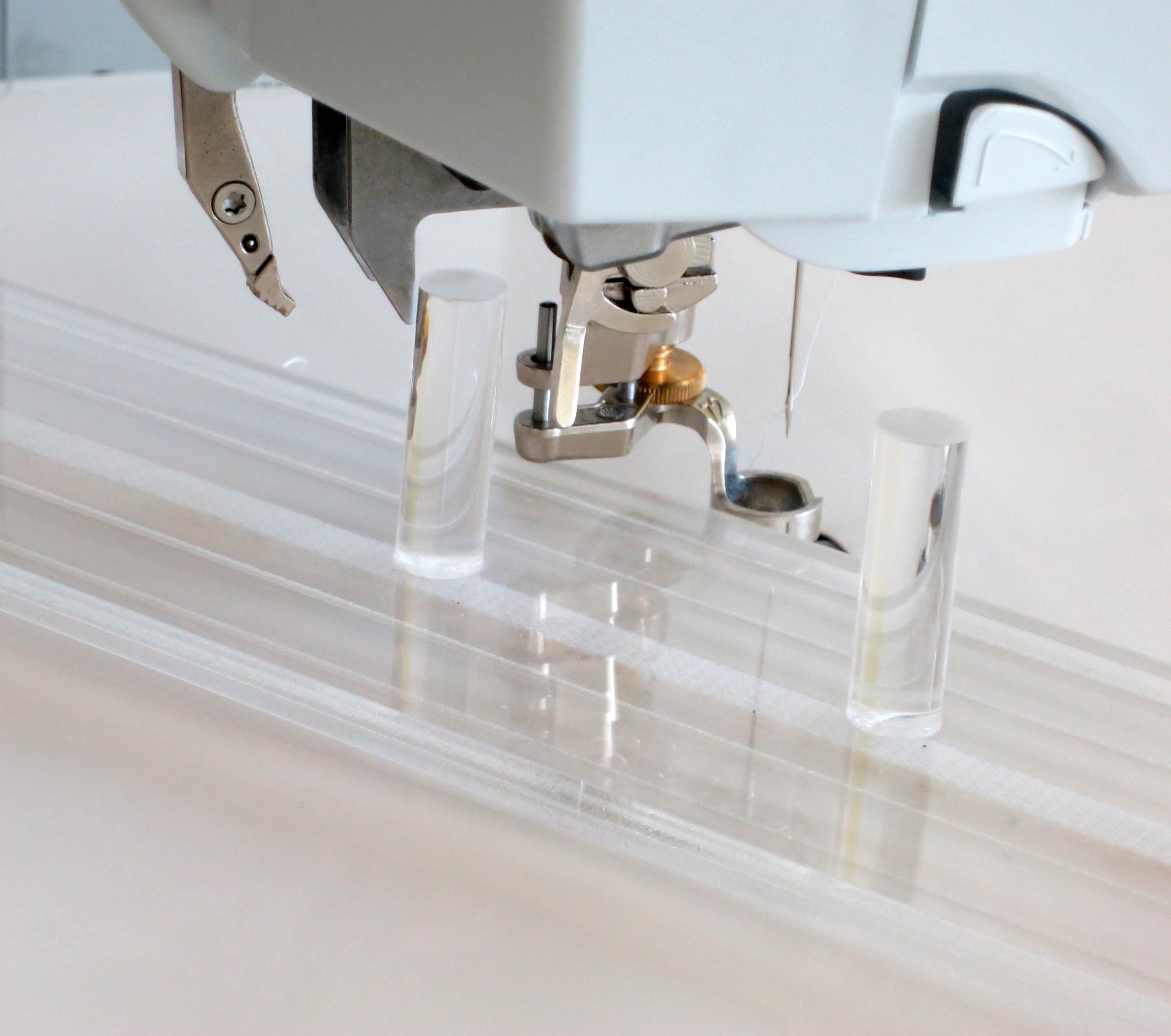

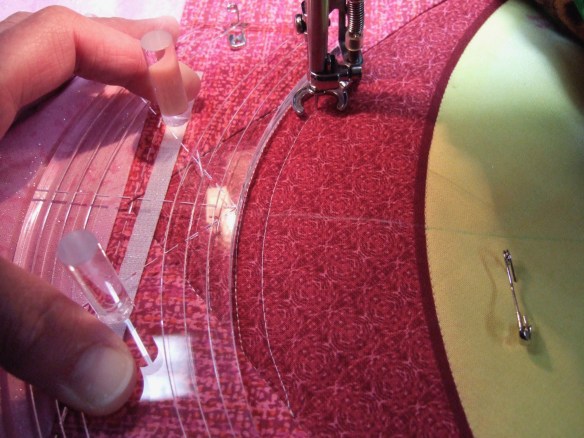

Here’s one of my first rulerwork attempts – doing a no-no by using a regular free motion quilting foot against a Fine Line brand quilting ruler.

Ruler work quilting with the WRONG machine foot!

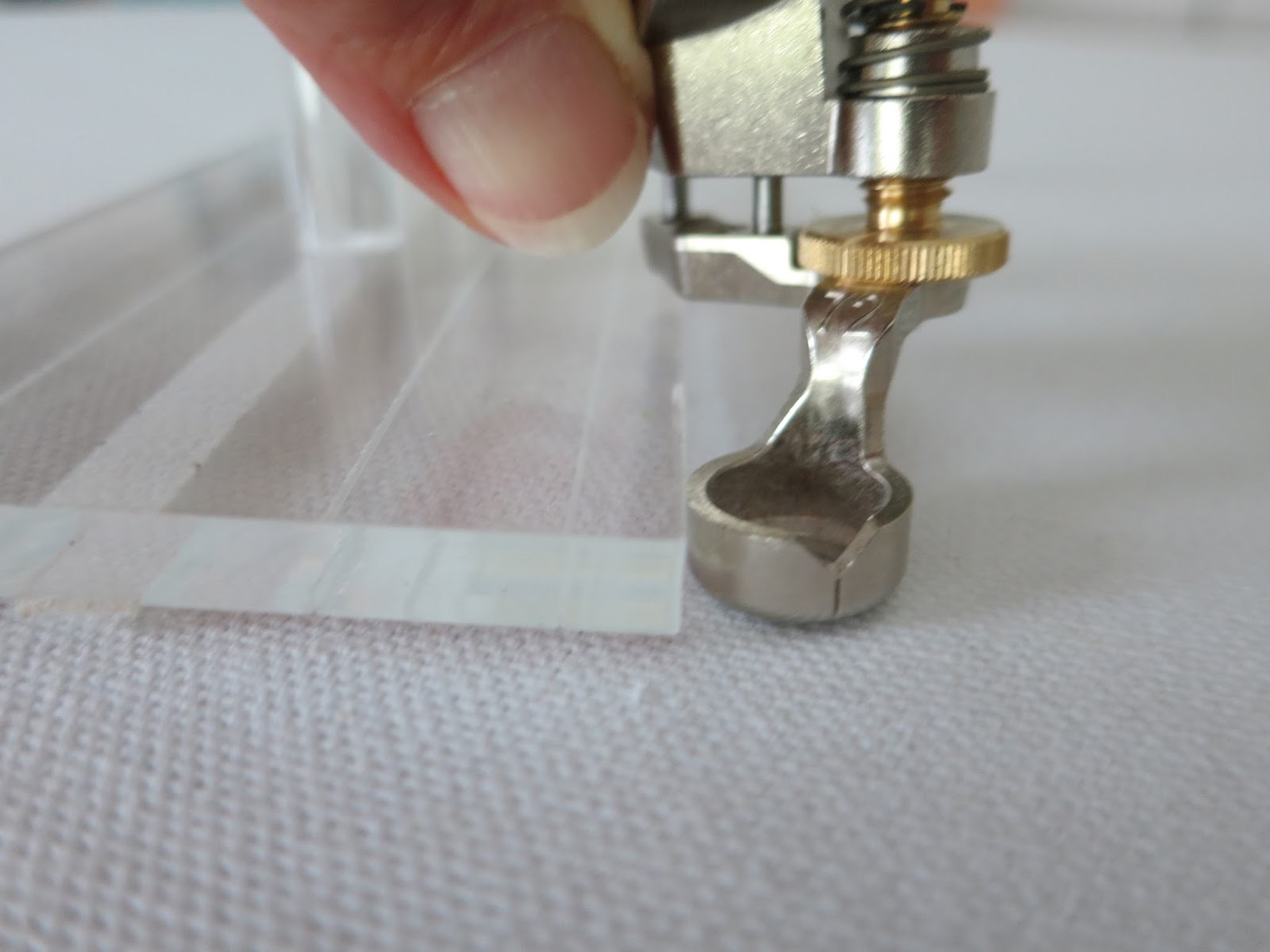

And here’s a picture showing how it should be done 🙂

This is the Bernina #72 foot.

For ruler work quilting, a quilter should use a ruler work quilting foot with a quarter-inch heel.

Two overall observations about the book:

  • Because Amanda quilts on a Bernina (both a domestic machine and a longarm machine) the book focuses on how to rulerwork quilt on a Bernina. One page is devoted to: “What if you don’t own a Bernina?”
  • Pages 29 to 102 of the 127 pages having photos of rulers being used on a Bernina longarm.

Amanda states:

“As a Bernina expert I am very familiar with the machines in the Bernina line, so that is what is shown here.  There are obviously a lot of other machines on the market, too.  If you have questions about any of them and their suitability for ruler work, please consult your local dealer.”

For me, currently using a Bernina 770QE for quilting, (I do not own a longarm), I was able to apply much of the information to my own Bernina experiences. She references using a stitch regulator, but those of us who quilt on a domestic machine with a stitch regulator, are unable to use the stitch regulator and a ruler work foot at the same time.

Interestingly, she mentions that rulerwork quilting is better for distributing quilting evenly across the surface because of being able to quilt in all directions:

“When you quilt with a ruler, you naturally change directions more easily than you would with a walking foot, and quilting in many directions generally ensures a squarer top than quilting in just one.”

This made me smile because Jacqui Gering, a renowned walking foot quilter with two quilting books under her belt, says precisely the opposite! According to Jacqui, there’s no need to change directions when quilting. Is it any surprise that two quilters have differing views? And doesn’t that make you feel better about how you quilt?

Amanda covers these important topics:

  • thicknesses and shapes of rulers
  • ruler work quilting table set-up
  • sewing machine settings
  • needles

I concur with these points covered in the book:

Ruler thickness is important, and which thickness ruler to buy depends on whether your machine’s ruler foot is high shank or low shank

Each sewing machine brand needs its appropriate high shank or low shank ruler work foot.

Buy a ruler you will use most often

Though Amanda mentions that different ruler brands are available, she definitely focuses on and uses her own line of Good Measure rulers made by Bernina.

Photo from the book showing one of Amanda’s rulers. Photo courtesy of C&T

Just as a quiltmaker invests in one or two most-used rotary cutting rulers, a rulerwork quilter need only invest in one or two rulers. Begin rulerwork quilting with a straight edge and/or gentle curve ruler and you’re good to go – like the Good Measure straight edge/curved edge ruler (shown in the book), or Westalee straight edge/curved edge ruler (shown below).

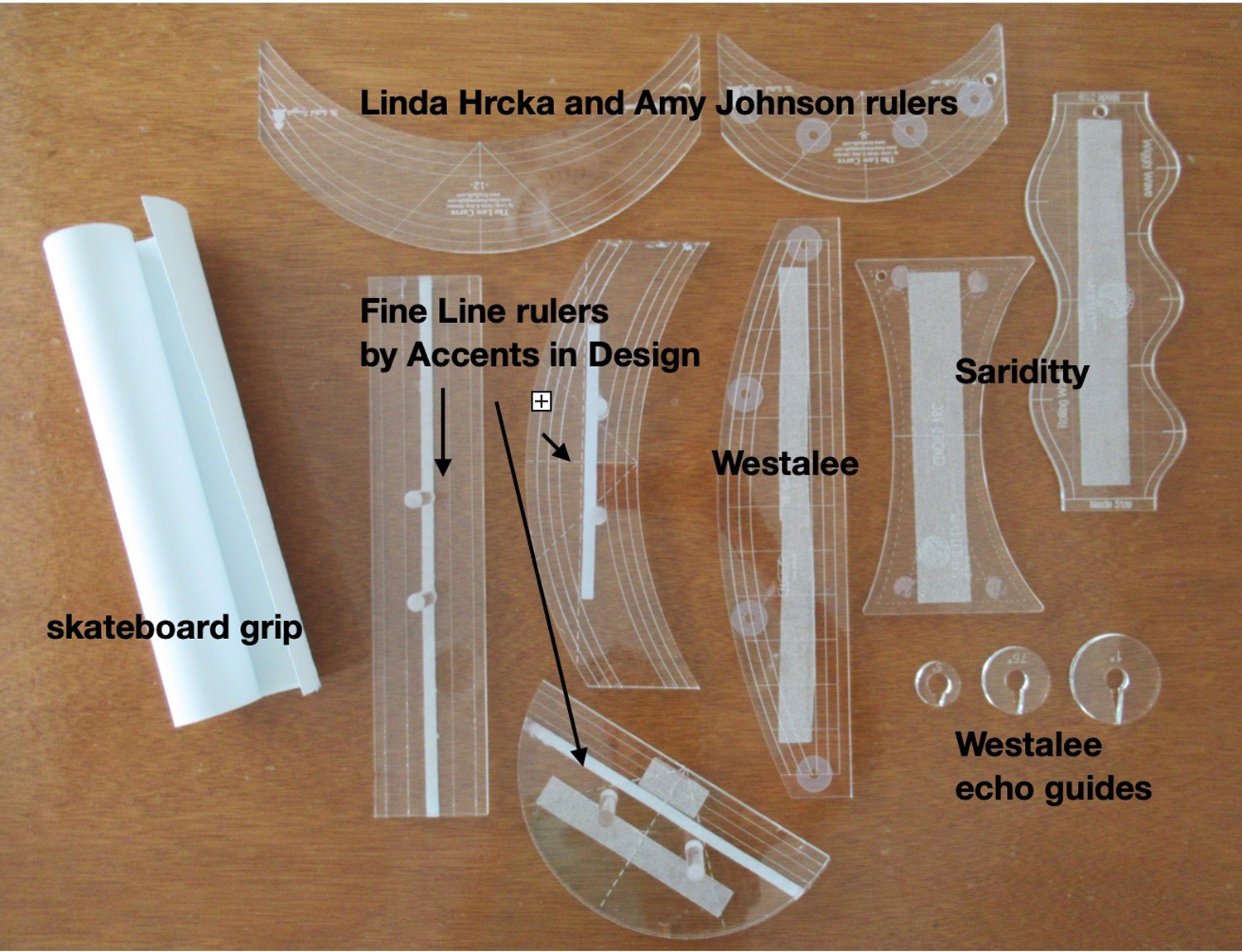

These are some of the brands of rulers I’ve accumulated in the past nine years, with Fine Line rulers being the ones I use most often… probably because that’s the brand I started with. I don’t own any Good Measure brand rulers.

Photo by Linda Hungerford

My ruler photo includes a picture of a roll of skateboard grip – a sort of sandpaper that’s grittier than sandpaper with an adhesive back. It’s the best product I’ve found for the bottom of the ruler, to make it “stick” to fabric while quilting. Amanda suggests putting blue painter’s tape or Stable Tape (by Westalee) on the bottom of the ruler.

A bit about Fine Line rulers… They’re different – made with two vertical posts to “hang onto” when quilting (see first blog picture). However, after buying a sewing machine with the dual feed feature, I quickly learned that these ruler posts bump into the dual feed! I can’t use the ruler on the back of the ruler foot, so that’s something to keep in mind when considering a Fine Line brand ruler.

Fine Line ruler posts bump into dual feed mechanism

Amanda mentions Bernina’s echo clips, something I frequently use, though the brand I own is made by Westalee. Each slips on/off the ruler foot, and has different spacing, so you can choose how far away to quilt from the previous line of quilting. It’s well worth $10 for the Westalee set!

Westalee Echo Clips

Set-up is important: have a flat work surface with a means for easy quilt gliding

Amanda recommends the Sew Steady table, and that’s exactly what I have. Top it with a Supreme Slider (or a Queen Supreme if you have a large machine harp), and you’re good.

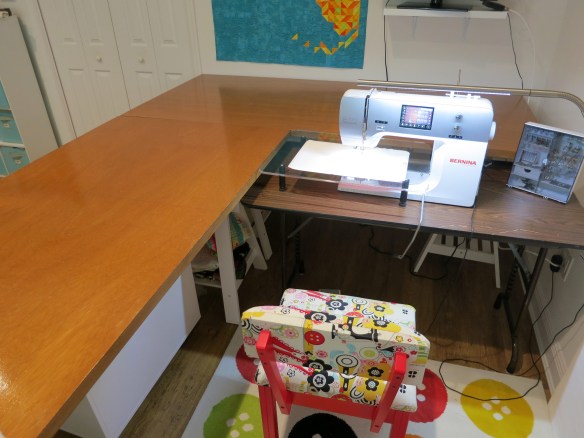

Here’s my quilting set-up contrived by placing two hollow-core doors across four IKEA adjustable-height Finnvard trestles.Amanda mentions wearing quilting gloves for rulerwork quilting. Personally, I prefer rubbing Neutrogena original formula hand cream on my hands, and then donning a pair of Marcia Baraldi Quilting Grip Gloves. It’s the perfect combo because my fingertips are  “grippy” and yet free to grab threads, tie knots, and even change a bobbin! (Neutrogena hand cream won’t harm your quilt.)

Although I have my favorite methods for rulerwork quilting, I also learned a thing or two in the book. The tip that meant the most to me is this one…

“Machine baste all the way around the sandwich through all layers, about 1/8″ from the edge of the quilt top.”

I’ve heard of taking a final “lap” around the outside of a quilt top, but I’d never heard of stitching around the perimeter of a basted quilt sandwich. I tried this on my latest quilt finish, my “Hole Punch Ribbon” quilt, and it worked to help keep my quilt “on the square!”  I blogged about this quilt here.

Amanda concludes the book with 31 pages of colorful quilt examples, showing different quilting designs on real quilts including quilt-as-you-go; followed by 14 pages about domestic machine quilting and troubleshooting; and 10 pages on longarm quilting and troubleshooting.

One of Amanda’s pretty examples from the book  Photo courtesy of C&T

All in all, this book is a good resource for a thorough introduction to rulerwork quilting, and is especially worthwhile if the quilter quilts on a Bernina. Then, it’s a must-buy!

Linda





Fiddlesticks!

Posted on by
20

I finished this quilt last month, but I’ve been doing a lot of quilting due to quarantine, so I’m behind on showing my work.  This is a scrap quilt, of course.  I’ve been seeing lots of quilts with little strips inserted on Pinterest, and finally got around to developing my own.

First, I got out all my solids, including the Grunge, and cut a 12″ square from each for background.  I planned to trim the blocks to 10.5″ after I finished inserting strips, since I have a 10.5″ square ruler 😀  No point making things difficult; let’s plan for easy!

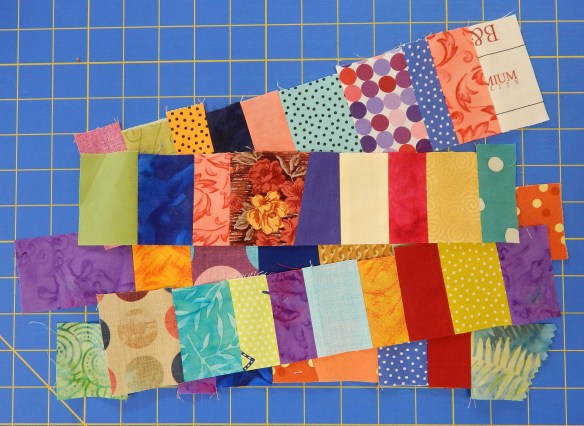

Then I got out all my scraps and cut them into strips ranging from about 1″ to 2.5″ in width.  I made strip sets and cut them crosswise into strips for the quilt.   The inserted strips were cut in widths varying from 1″ to 2″, which of course means they finished 0.5″ to 1.5″ wide in the blocks.  I made more skinny ones than wide ones.

I just slashed the blocks at random angles.  I did slash and insert only one strip at a time.

After I’d inserted enough strips to suit me, I trimmed each block to 10.5″ square.

Just look at the fun flower design my quilter used!

And yes, I left 3 blocks unpieced to add interest.

Quilt stats:  Fiddlesticks

Finished size: 49″ x 69″

Designed by me, based on multiple inspirations from Pinterest

Technique: Improvisation

Quilted by Julia Madison

A Little Help From My Friends

Posted on by
10

As in, “I get by with…”  Anyway, my blogging friend Chela asked for tips on how I matched the doggone intersections in “Plaid-ish”, and several other people commented that intersections are a challenge.

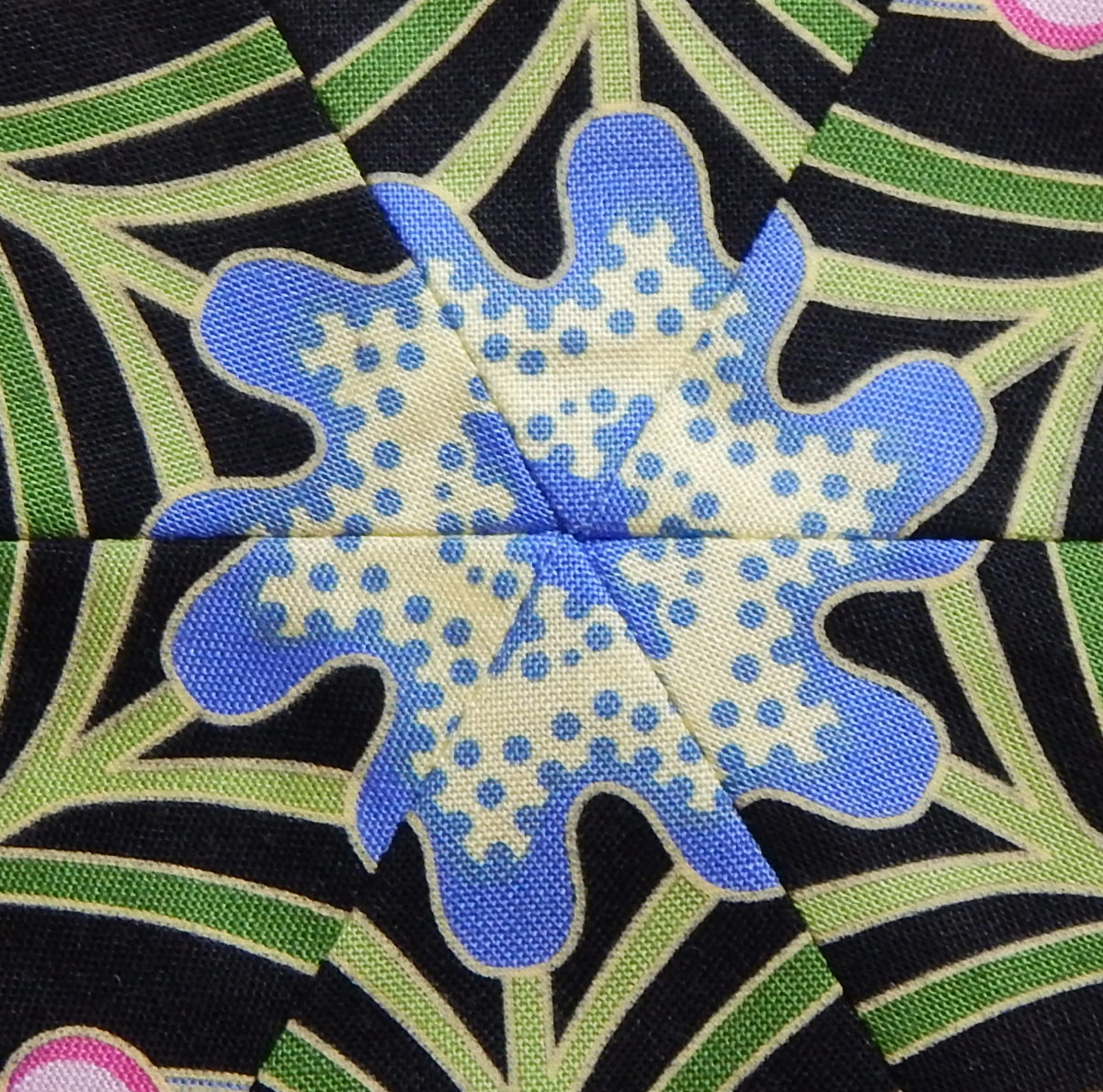

Yes! There were a lot of little intersections to match–good practice!

I’m always glad to have somebody suggest a blog topic, so here we go:

It’s important to note that I learned all these techniques from other quilters, so it’s good to pass them on.

First, a little editorial comment from me.  YOU are the only judge of how exact your seams need to be.  I’ve made several quilts for the cat.  I matched my seams as well as my skills allowed, but I did NOT take any out and re-do them.

  1. Practice helps the most.  I DID say a few bad words while piecing this quilt with orange squares that finished 3/4″, but it was a learning experience (eek!).

    You can find the original pattern for this quilt by going to AllPeopleQuilt.com and searching for the “trail mix” pattern

  2.  That consistent 1/4″ seam is as important as you’ve always been told.  (Yada, yada.)   I like any of the devices out there to help sew an accurate quarter inch seam, including the foot with the little guide on it and a variety of things you can stick to the surface of the machine bed.  Most of us have this one mastered.

    My tool to help with 1/4″ seam has been around so long the plastic is yellowed!

  3. With regard to cutting accurately, I’ve been told several times not to use the lines on my cutting mat because they are less accurate (being wider) than those on the ruler.  Sometimes I do, sometimes I don’t.  If I ever get SO accomplished that the little difference in using the cutting mat to measure is what’s throwing me off, I’ll change 🙂

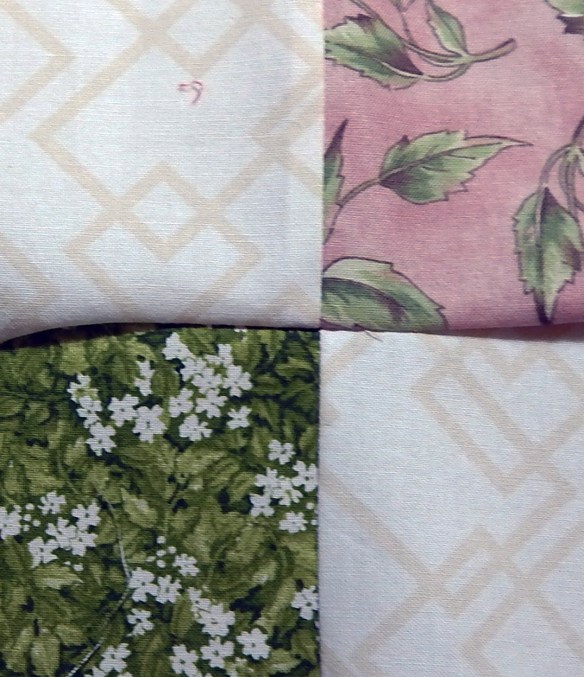

  4. When I’m going to have a 4-point intersection, I press seams to the side whenever possible so that they can be nested.  This makes a big difference in aligning the intersection precisely, at least for me.

    Here are the pieces laid side by side as they will be sewn, so you can see the seams pressed in opposite directions.

  5. I learned somewhere to put the pin to the side of the intersection that will be sewn second so that the foot is pushing the intersection together.  It is the opposite of what I was doing, and it seems to work.
  6. Even more important, Cindy Williams told me to always sew in the direction shown by the arrow (above) so that the seams are pushed together rather than apart as you sew.  That one really does help (thanks, Cindy!).  If the piece is small enough, I’ll even use the opposite side of the foot when necessary to be able to sew in this direction
  7. And now the picky part, but it saves time and frustration.  If I have any doubts, I set my stitch length as long as possible and machine baste through the intersection and about 1″ on each side. Then I look.  If it matches, great; just set the stitch length back to normal and sew the entire seam. Sew right on top of the basting.  If the intersection doesn’t match, it’s quick and easy to pull that basting thread out and try again.
  8. If the problem with matching seams is that the two pieces being joined are not quite the same size, here are a few options.
    1. Take out a couple of inches of one of the seams and make it either bigger or smaller, depending, and then taper your stitching back into the original seam line an inch or two down from the end where you started.
    2. If the difference isn’t too much, pin well and then sew with the longer piece on the bottom.  The feed dogs sometimes can “ease in” a section that is a bit too big.
  9. Finally, I choose my limits.  Sure these points match, but I really don’t plan on making another quilt that requires bringing 6 seams together any time soon!

Please feel free to email me with questions. And thanks to Chela and others for the idea for a post!

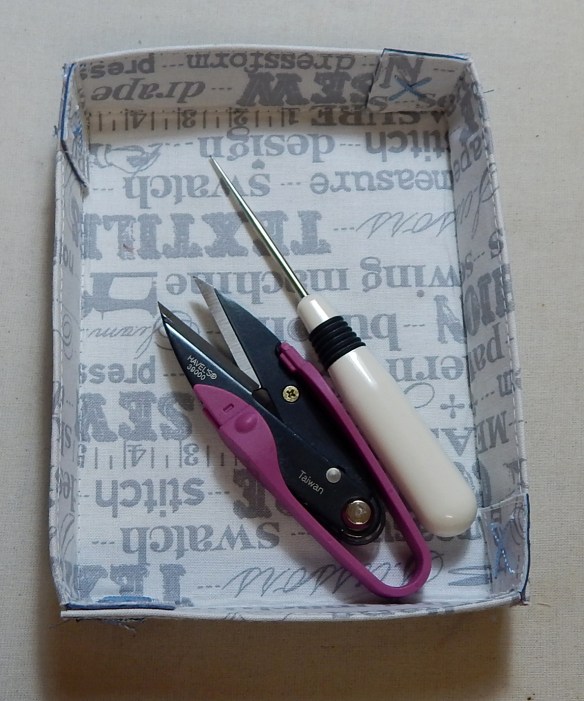

Kraft-Tex Tray

Posted on by
9

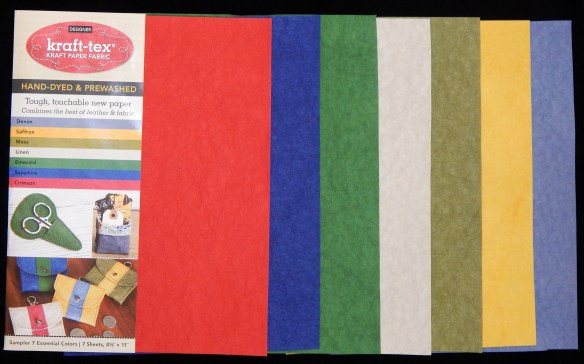

The folks at C&T just sent me a package of the beautiful new hand-dyed, prewashed, Kraft-Tex. (Please note that they provide this to me with no obligation and I do not get a kickback if you buy it.  However, if your local quilt shop doesn’t carry it, you can get it directly from C&T here.)

The denim blue called to me first, and I needed a little tray to go beside my machine.  Unless my tools are “corralled” they tend to roll or bounce off the table when I sew.  The fabric tray I’ve been using was looking a little tired (the sides had sort of collapsed) and I thought Kraft-Tex would be a good material for making a sturdier tool tray.

I made a prototype from cardboard first to figure out the best size and shape for my tools.  Here are instructions for making the tray in case you want one, too:

Cut the Kraft-Tex 6-1/2″ x 8″ and mark (with a heat-erasable pen) 1″ in from each side.  Put a #70 needle in the sewing machine, lengthen the stitch a little, and remove the thread.  Stitch around the central rectangle without thread to mark the edges of the tray base and kind of score the Kraft-Tex so it will fold well on those lines.  Fold and press along these lines–it’s fine to fold all the way to the edge even though it wasn’t necessary to sew that far.

This picture was taken later in the process, but you can see where the material was pressed along the fold lines.  You can press either with or without steam; both work fine without distorting the Kraft-Tex.

Select your lining fabric and cut it 1″ bigger than the Kraft-Tex in both length and width; my lining fabric was cut 7-1/2″ x 9″.  Fuse the lining material to some stiff interfacing, then apply Heat’n’Bond or your favorite fusible web to the interfacing.

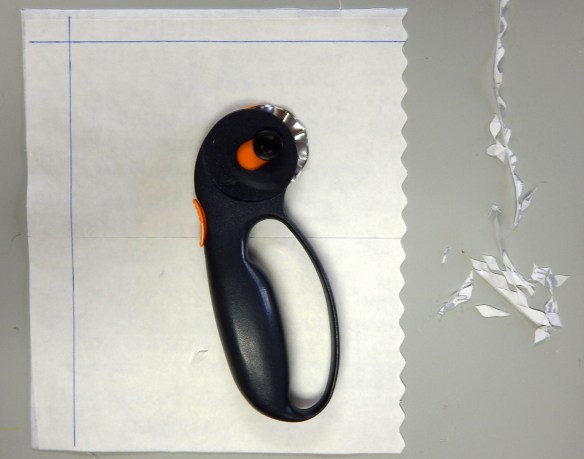

Once all of that is fused, cut the lining down to 7″ x 8-1/2″ using either a pinking blade in your rotary cutter or your pinking shears.  Or, if you don’t want a decorative edge, just cut the edge straight.  NOTE that if you use a pinking blade in your rotary cutter, you will want to cut on the back side of your cutting mat because the blade can kind of chew up the mat.  Also, the blade will chew up the edge of your ruler, so either use an old ruler or cut about 1/8″ away from the ruler.

Now lay the Kraft-Tex down on the fusible side of the trimmed lining.  Note that Kraft-Tex has a slightly different texture on each side, but there is no “right” side–use the one you like best.  Get everything centered, then turn the decorative edge to the outside and clip it in place with something heatproof. Fuse the edges, then the central part of the lining, to the Kraft-Tex.  Again, you can use steam if it helps.

Now put some thread in the machine!  Sew around the edges of the tray bottom where you previously pressed the sides up.  I marked the edges again with heat-erasable marker to make this easier.  This step will help hold the lining in place.  Edge stitch around the upper edge of the tray as well

Now don’t do what I did 😉  I mistakenly cut out all 4 corners on my first box.  Just cut one side of each corner to create a flap that can be used to hold the box together!











Here’s how the corner will look finished–see the flaps?

Fold and press the box along the stitching lines bordering the bottom.  Fold the flaps in and glue or sew them in place.  I glued them, then sewed a decorative X in each corner.  I used the awl shown in the picture to punch little holes for the needle to go through when I made the X stitches by hand.

And that’s it!  The resulting tray looks plenty sturdy to hold those little tools beside my machine.  And besides, it was fun to make something new!

What have you been up to?
